Read column index of a cell in a table header

[andreas.weirauch]

Hi!
I evaluate currently Spire.XLS and until now it seems to be a very impressive product.

But now I need some help:

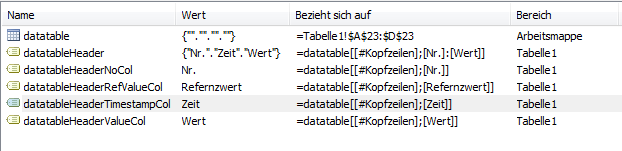

I have an Excel-sheet with a named table (datatable). In this table is a named range datatableHeader with named cells (datatableHeaderNoCol, datatableHeaderTimestampCol, datatableHeaderValueCol and datatableHeaderRefValueCol).
I When i try to access the cells inside the table header, an exception occurs:

Code: Select all

datatable[[#Headers] is not valid named range

The code:

Code: Select all

int idxTimestampColumn = worksheet.Names["datatableHeaderTimestampCol"].RefersToRange.Column;


Where is my fault?

[amy.zhao]

Dear Andreas,

Thanks for your inquiry.
Please try the code snippet below.

Code: Select all

INamedRange rg = workbook.NameRanges.GetByName("datatableHeaderTimestampCol");
IXLSRange range = rg.RefersToRange;
int idxTimestampColumn = range.Column;


If you still have this issue, please provide us your template file. Thanks!

Regards,
Amy
E-iceblue support team

[andreas.weirauch]

Thanks for the quick response!

It does not work anyway

My entire test code is:

Code: Select all

Workbook workbook = new Workbook();
FileStream fs = new FileStream(@"D:\temp\Sample.xlsx", FileMode.Open, FileAccess.Read, FileShare.ReadWrite);
workbook.LoadFromStream(fs, ExcelVersion.Version2010);
Worksheet worksheet = workbook.Worksheets[0];

INamedRange rg = workbook.NameRanges.GetByName("datatableHeaderTimestampCol");
IXLSRange range = rg.RefersToRange;
int idxTimestampColumn = range.Column;


[amy.zhao]

Dear Andreas,

Thanks for your feedback.
Sorry for the delay response for the weekends here.
Our Spire.Xls component doesn't support structured references with Excel tables at present. Sorry for the inconvenience.
But our dev team is working on this feature. We can support this feature next version.
Once new version has been released, we will inform you immediately.

Regards,
Amy
E-iceblue support team

[andreas.weirauch]

Hi!

Thanks for the info.
Until then I will then use a workaround.

Regards
Andreas
